2. Miscellaneous Plates
3.high working efficiency
4.compact structure,316L SS
Application
We supply plate heat exchanger to heat or cool raw materials and products. The medium may be steam, tower water or hot water. It can be used in juice, dairy, beverage and other processing.The ideal device for heat exchange of liquid-liquid and liquid-steam.
Composition

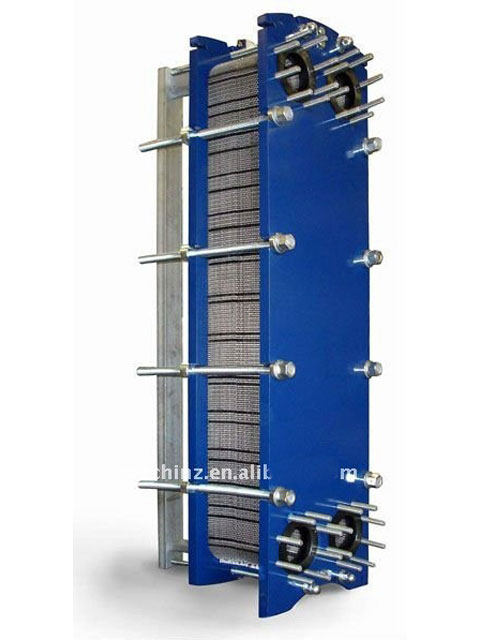

Each plate is provided with a gasket, which seals the flow gaps to atmosphere and the media from one another. The
plate package is mounted in a rack consisting of a fixed number of plates. Two pressure plates clamp this package
together with tie rods. Pure counter flow is employed to achieve maximum possible heat transfer.
Technology parameter
|
Model specification |
BR0.05-3 |
BR0.1-4 |
BR0.25-5 |
|
Heat exchanging area of single plate(m2) |
0.05 |
0.1 |
0.2 |
|
Cooling capacity (L/h) |
700 |
1500 |
2500 |
|
Steam pressure (MPa) |
0.4-2 | ||
|
Using temperature (°C) |
120-160 | ||
|
Angle hole diameter (mm) |
38 |
60 |
75 |
|
Take over diameter (mm) |
28 |
38 |
46 |
|
Heat exchanging pieces of single machine |
60 |
40 |
25 |
|
Heat exchanging area of single machine (m2) |
3 |
4 |
5 |
